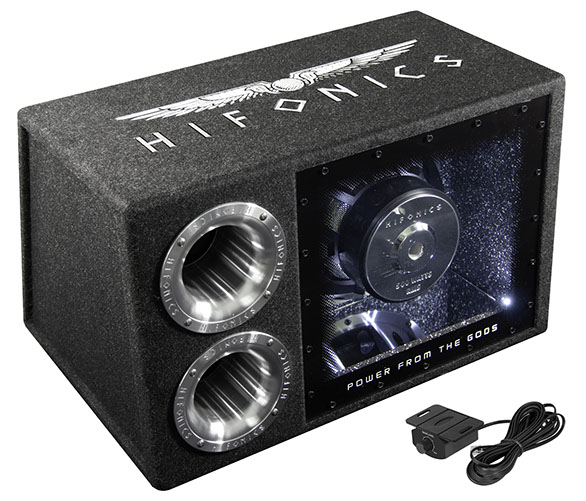

ATL12BPA

30 cm (12") Active Bandpass

With a bandpass subwoofer from HiFonics, every bass lover will hit the mark. Earthquake-like bass attacks, such as those delivered by the Atlas subs equipped with double magnets and aluminum baskets, are part of the program with the legendary HiFonics bandpasses!



The tried-and-tested Atlas bandpass box is now also available as an active version ATL12BPA for bass addicts. An integrated, 460 watt RMS Class D high-power active module provides the necessary power. The modern and efficient variant is not only impressive on paper: in the test in the Car&Hifi trade magazine 03/2024, the box was completely convincing and was placed in the absolute top class with a grade of 1.1. It was even named BEST PRODUCT in the active subwoofer category.



With the integrated 460 watt RMS Class D amplifier, HiFonics uses not only a particularly powerful active module, but also a very efficient one with 84% efficiency. This saves battery power. But it's not just the performance that's great, the extensive features are also amazing. Thanks to EPS® PRO, the box can be easily connected to modern factory radios via the integrated high-level inputs. Bass boost, subsonic filter, phase switch, RCA inputs and auto turn on are also on board. The amp even has a bass level remote control.

Specifications

30 cm (12") Active Bandpass

460 W/RMS, 920 W/MAX, 4 Ω

Mirrored Interior Chamber
LED Interior Illumination (white)

LPF 40-120 Hz @ 12 dB

Phase Shift 0°/180°

Bass Boost 0-6dB @ 45Hz

RCA Low Level Input

High Level Input

Auto Turn-On Function (DC or signal)

Start-stop capable, 5 sec./ up to 7 Volts

EPS® PRO with 10R / 150R / 600R (switchable)

Input Sensitivity 15 or 40 Volts (switchable)

Triple Limiter Function, Clipping LED

Bass Remote Controller

Dimensions: 60 x 38 x 44/31 cm

€ 549,00

Manufacturer's suggested retail price, changes and mistakes reserved.
