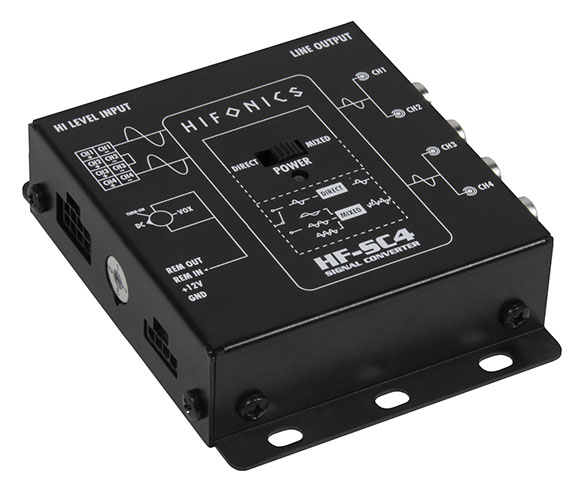

HF-SC4

4-Channel "High To Low Level" Signal Converter

The signal converters from HiFonics impress with their absolutely brilliant sound properties. The result is no coincidence, so the developers attached great importance to excellent technical data right from the conception phase. And they can really be seen and heard: sensationally high signal-to-noise ratios of 115-121 dB with very low distortion factors of 0.001% at the same time. They are designed for the connection to conventional car radios that deliver up to 50 watts RMS per channel into 2 ohms.



As a further special feature, the multi-channel converters have a summing function on board. This circuit is a "must have" for many new vehicles if the music signal cannot be tapped "in one go", but the frequency ranges for the factory-installed speakers have been electrically separated. A conventional converter would be completely useless here. With the HF-SC converters the split output signals from the factory system can simply be merged again by activating the "MIXED" function. The sophisticated electronics then generate a full-range signal at the outputs, with which external DSPs or amplifiers can be optimally supplied.



Thanks to EPS, the converters can also be easily connected to factory radios that have a so-called load detection circuit. Another feature for interference suppression can be activated via the "Floating Ground" jumpers.

Specifications

4-Channel "High To Low Level" with Summing-Function

Auto Turn-On

Remote Out (Turn-on Signal for further Devices is generated)

Start/Stop ready

Error Protection System

THD+N 0,00*1%

RCA Outputs (unbalanced) with 5 V/RMS

High Level Input up to 10 V/RMS

SNR >115 dB

Transmission Frequency 5-60 kHz

„Floating Ground“ Jumper

Dimensions: 97 x 25 x 75/82 mm

€ 69,00

Manufacturer's suggested retail price, changes and mistakes reserved.
