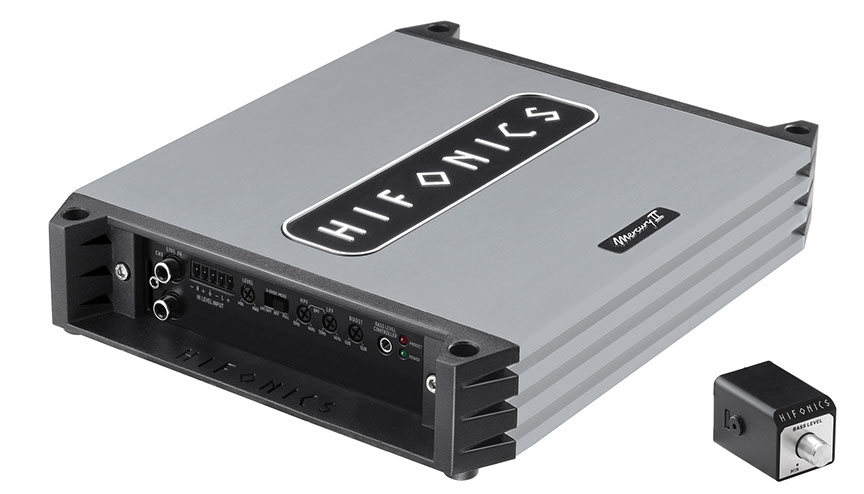

MERCURY IIV2

Class A/B Analog 2-Channel Compact Amplifier

Due to its compact design and high performance, the MERCURY series has always had a special place in the HiFonics range. The popular amplifiers have now been expanded to include new models and are available as V2 editions with even more power of up to 2 kW and new features. Now, auto-on high-level inputs, EPS, and a sleek bass-level remote control are included.



With the brand new MERCURY II, the V2 version of the 2-channel variant is now also available. With significantly increased power of up to 2 x 150 Watts RMS at 4 Ohms, up to 500 Watts RMS can be accessed for powerful loudspeakers or for subwoofers in bridge operation. Incl. bass level remote control

Features

• Compact Foot Print
• Heavy Aluminum Heatsink with Perfect Cooling
• Die-Cast Ends with Concealed Mounting Channels
• High Efficiency and Powerful Performance



• Molded Power and Speaker Terminals
• High Level Inputs with EPS (Error Protection System)
• Auto Turn-On
• Bass Level Remote Controller

Specifications

Class A/B Analog 2-Channel Compact Amplifier

2 x 150/250 W/RMS @ 4/2 Ω

1 x 500 W/RMS @ 4 Ω bridged

HPF 10 - 4000 Hz

LPF 50 - 4000 Hz

Bass Boost 0 - 12dB

Bandpass Function

RCA Inputs

Dimensions: 205 x 46 x 258 mm

Downloads

Owner's Manual
