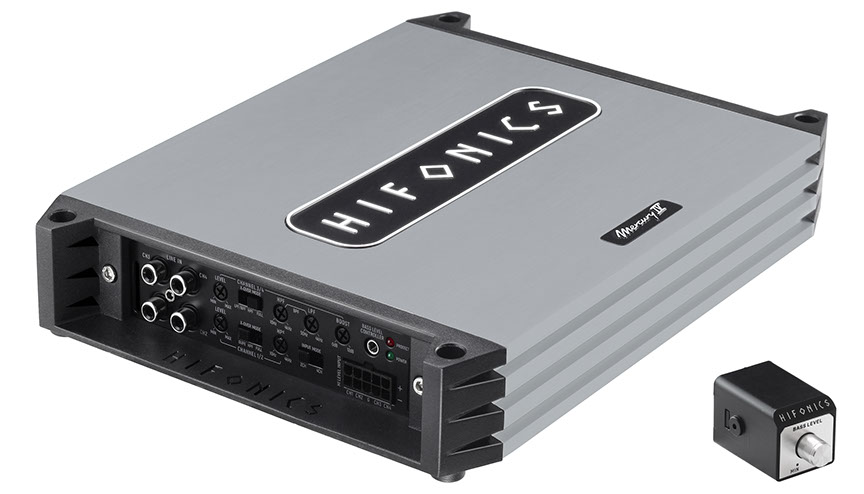

MERCURY IVV2

Class A/B Analog 4-Channel Compact Amplifier

Due to its compact design and high performance, the MERCURY series has always had a special place in the HiFonics range. The popular amplifiers have now been expanded to include new models and are available as V2 editions with even more power of up to 2 kW and new features. Now, auto-on high-level inputs, EPS, and a sleek bass-level remote control are included.



The MERCURY IV is the perfect choice for front or rear speakers due to its outstanding sound characteristics and features. The improved V2 version now offers extended filters up to 4000 Hertz and also enables the popular 3-channel mixed operation. With the practical bass level remote control, you can conveniently control the volume of small to medium-sized subwoofers from the driver's seat.

Features

• Compact Foot Print
• Heavy Aluminum Heatsink with Perfect Cooling
• Die-Cast Ends with Concealed Mounting Channels
• High Efficiency and Powerful Performance



• Molded Power and Speaker Terminals
• High Level Inputs with EPS (Error Protection System)
• Auto Turn-On
• Bass Level Remote Controller

Specifications

Class A/B Analog 4-Channel Compact Amplifier

4 x 85/125 W/RMS @ 4/2 Ω

2 x 250 W/RMS @ 4 Ω bridged

HPF 10 - 4000 Hz (CH1/2)

HPF 10 - 4000 Hz (CH3/4)

LPF 50 - 4000 Hz (CH3/4)

Bass Boost 0 - 12dB (CH3/4)

Bandpass Function (CH3/4)

CH3/4 > CH1/2 Dupe Function

Input Selector 2CH/4CH

RCA Inputs

Dimensions: 205 x 46 x 278 mm

Downloads

Owner's Manual

Test Review
