MERCURY IV/800 EVO

Class A/B Analog 4-Channel Amplifier

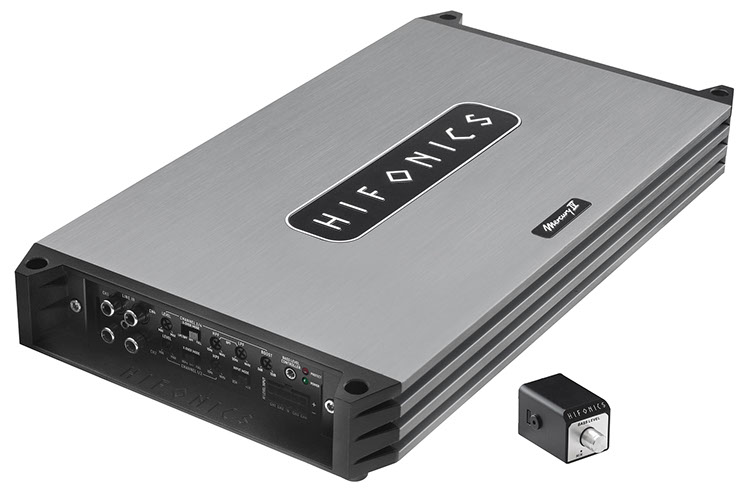

If you are looking for a powerful 4-channel amplifier, you should take a closer look at the new MERCURY EVO series. With the brand new model MERCURY IV/800 EVO, HiFonics is expanding its range with a real powerhouse. This becomes obvious as soon as you unpack it: an impressive heat sink that weighs 4 kg and is almost 40 cm long immediately catches the eye. It quickly becomes clear that you are holding a classic analog power amplifier with enormous performance in your hands.



Thanks to the analog Class A/B design and an impressive output of 4 x 200 watts RMS, the MERCURY powerhouse is ideal for power-hungry front and rear speakers, and impresses with its excellent sound properties. Due to its enormous power, it can also easily be used in bridge mode on channels 3-4 to powerfully drive powerful subwoofers with 400 watts RMS. That's why we didn't miss out on a practical bass level remote control, which is included in the scope of delivery.

Features

• Heavy Aluminum Heatsink with Perfect Cooling
• Die-Cast Ends with Concealed Mounting Channels
• High Efficiency and Powerful Performance
• Molded Power and Speaker Terminals



• High Level Inputs with EPS® (Error Protection System)
• Auto Turn-On
• Bass Level Remote Controller

Specifications

Class A/B Analog 4-Channel Compact Amplifier

4 x 125/200 W/RMS @ 4/2 Ω

2 x 400 W/RMS @ 4 Ω bridged

HPF 10 - 4000 Hz (CH1/2)

HPF 10 - 4000 Hz (CH3/4)

LPF 50 - 4000 Hz (CH3/4)

Bass Boost 0 - 12dB (CH3/4)

Bandpass Function (CH3/4)

CH3/4 > CH1/2 Dupe Function

Input Selector 2CH/4CH

RCA Inputs

Dimensions: 205 x 46 x 388 mm

Downloads

Owner's Manual

Test Review
