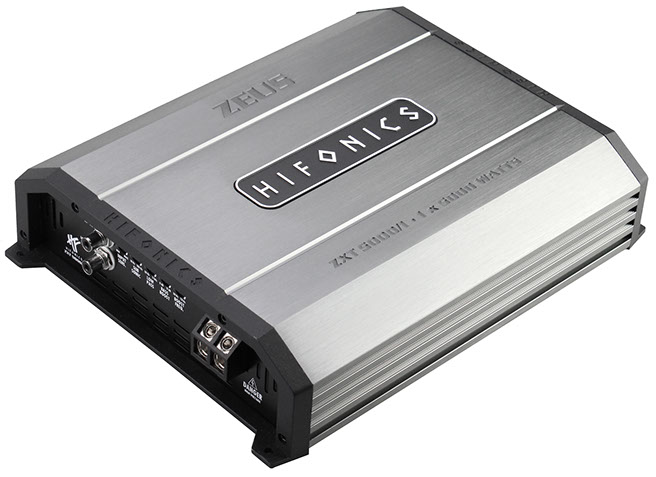

ZXT5000/1

Ultra Class D Digital Mono Amplifier

With the new ZEUS EXTREME ULTRA CLASS D series, HiFonics presents the most powerful amplifier series in its history to date. For these extraordinary bolides, HiFonics uses the latest developments and improvements of the most modern semiconductors. While analog Class A/B technology always forces a compromise between sound and power efficiency, Class D amps improve efficiency and sound together. This means that with increased efficiency, the audio performance will also increase significantly. Another advantage is that you can do without large heat sinks with a very high degree of efficiency. The ZXT EXTREME amps achieve fantastic efficiency values ​​of around 90%. The beautifully crafted heatsinks with milled model numbers, diamond-cut logos and aluminum end caps underline the unmistakable, timeless design, as is usual with HiFonics - Power From The Gods!

Features

  • Ultra Class D Technology with very High Efficiency
  • Solid Aluminum Heatsink with Cast Aluminum End Pieces
  • Screw-Type RCA Jacks



  • Molded Power and Speaker Terminals
  • Clipping LED
  • 3-Way Protection Circuit

Specifications

Ultra Class D Digital Mono Amplifier

1 x 1800/3300/5000 W/RMS @ 4/2/1 Ω

Subsonic 10 - 100 Hz

LPF 50 - 5000 Hz

Bass Boost 0 - 12dB @ 30 - 70 Hz

RCA Low Level Input mono 0,4 - 3,6 V

RCA High Level Input mono 1,0 - 9,0 V

Dimensions: 215 x 60 x 278 mm

Efficiency up to 93%

Downloads

Owner's Manual

€ 699,00

Manufacturer's suggested retail price, changes and mistakes reserved.
