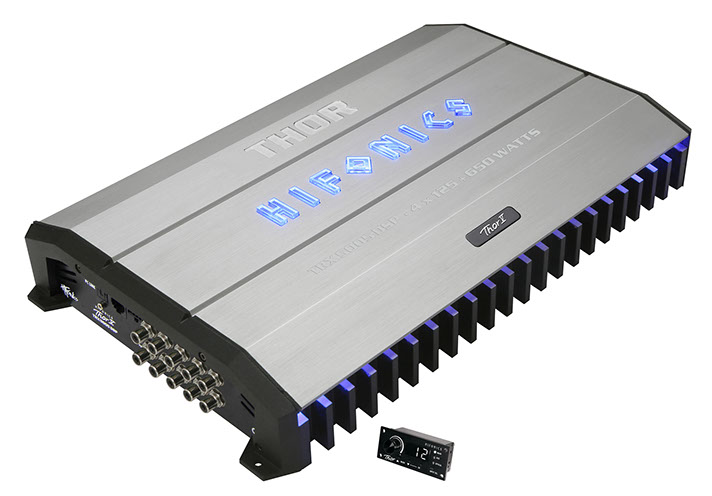

TRX5005DSP
Class A/B & D Hybrid 5-Channel Amplifier with 8-Channel DSP Processor
With the THOR TRX Series HiFonics perfectly combines classic amplifiers virtues with the breakthrough DSP technology. Styled in the same outfit as the new premium class of the Zeus, Brutus- and Atas series models offer the usual HiFonics sovereign amplification power with integrated DSP processor, which can be optimally adjusted by the included M-CONTROL software.
The enclosed M-CONTROL 2 software provides a variety of options to customize your sound system to the vehicle‘s acoustic. A clear and logically structured user interface allows intuitive handling and sound tuning in real time while the DSP device is connected via USB to the software. All 8 channels can be configured individually or as 4 linked channel pairs. Besides the up to 48db adjustable crossover filters, high pass, low pass and band pass also parameters such as phase shift and time delay per channel can be set easily. The 6 channels (A-F) feature each a 31-band equalizer and for the subwoofer channels (G+H) an 11-band version is available. Up to 10 different configurations can be stored.
Features
- 8-Channel DSP Processor 32bit / 192 kHz
- Remote Controller with LCD Display for Master Volume, Subwoofer Level, Input Mode, Preset Selection
- Screw-Type RCA Jacks
- Illuminated Logo Badge (blue or white)
- Laterally Blue Illuminated Heatsink Fins
- Blue Terminal Illumination
- Heavy Die-Cast Frames
- Low-Noise Input OP-Amps (9V/µS Slew-Rate)
- Double-Sided PC-Board
- M-CONTROL 2 DSP Software for Windows™
- 10 storable Presets
- 6 x 31-Band EQ 20~20.000 Hz
- 2 x 11-Band EQ 20~200 Hz
- 6~48 db/Oct. Crossovers HPF/BPF/LPF
- Time Delay 0~15 ms/0~510 cm
- Phase Shift 0/180°
Specifications
Class A/B & D 5-Channel Amplifier with 8-Channel DSP Processor
Class A/B: 4 x 75/125 W/RMS @ 4/2 Ω
Class D: 1 x 250/450/650 W/RMS @ 4/2/1 Ω
6 x RCA Input
2 x RCA AUX Input
2 x RCA Output
1 x USB Port
Optical Input (stereo PCM 2.0)
Dimensions: 255 x 62 x 415/455 mm
€ 399,00
Manufacturer's suggested retail price, changes and mistakes reserved.
